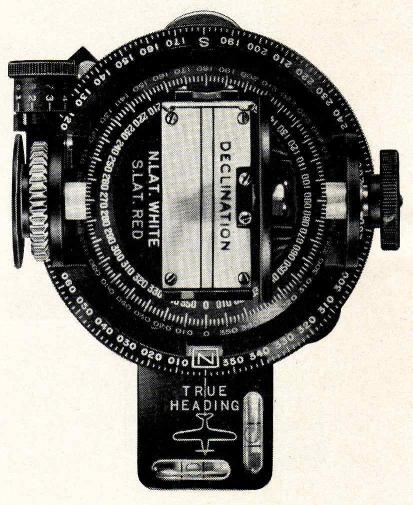

This is from Page 4 of the Boes handbook
and shows a plan view of the compass
with the Aircraft outline.
Not a bad idea, especially if your
compass mount has been fitted locally. The nose should be pointing
to the front of your aircraft.
