Mk IXA, B, AM and BM Sextants

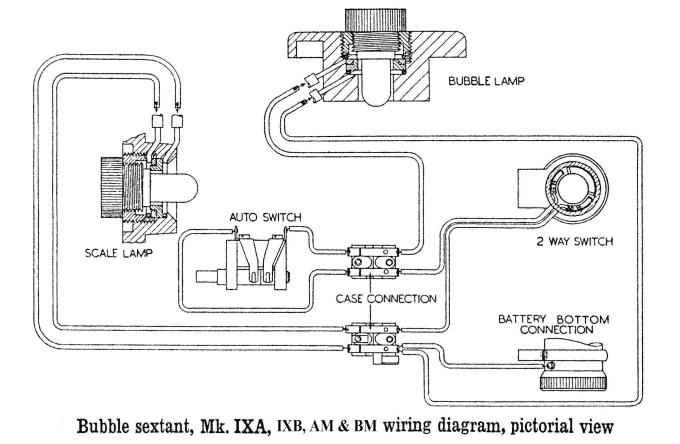

Electrical Diagrams

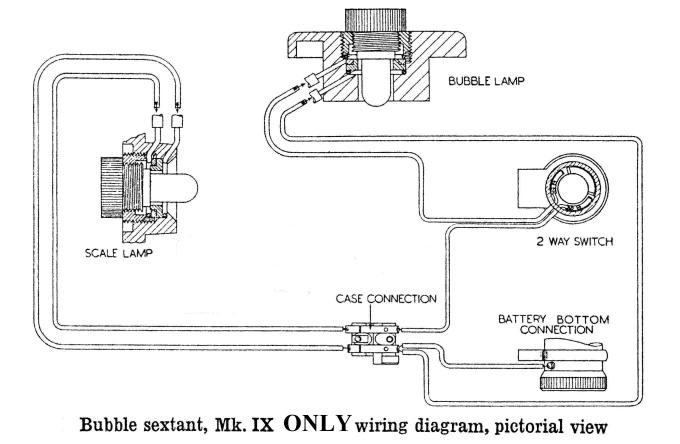

The MK IX does not have an Auto Switch

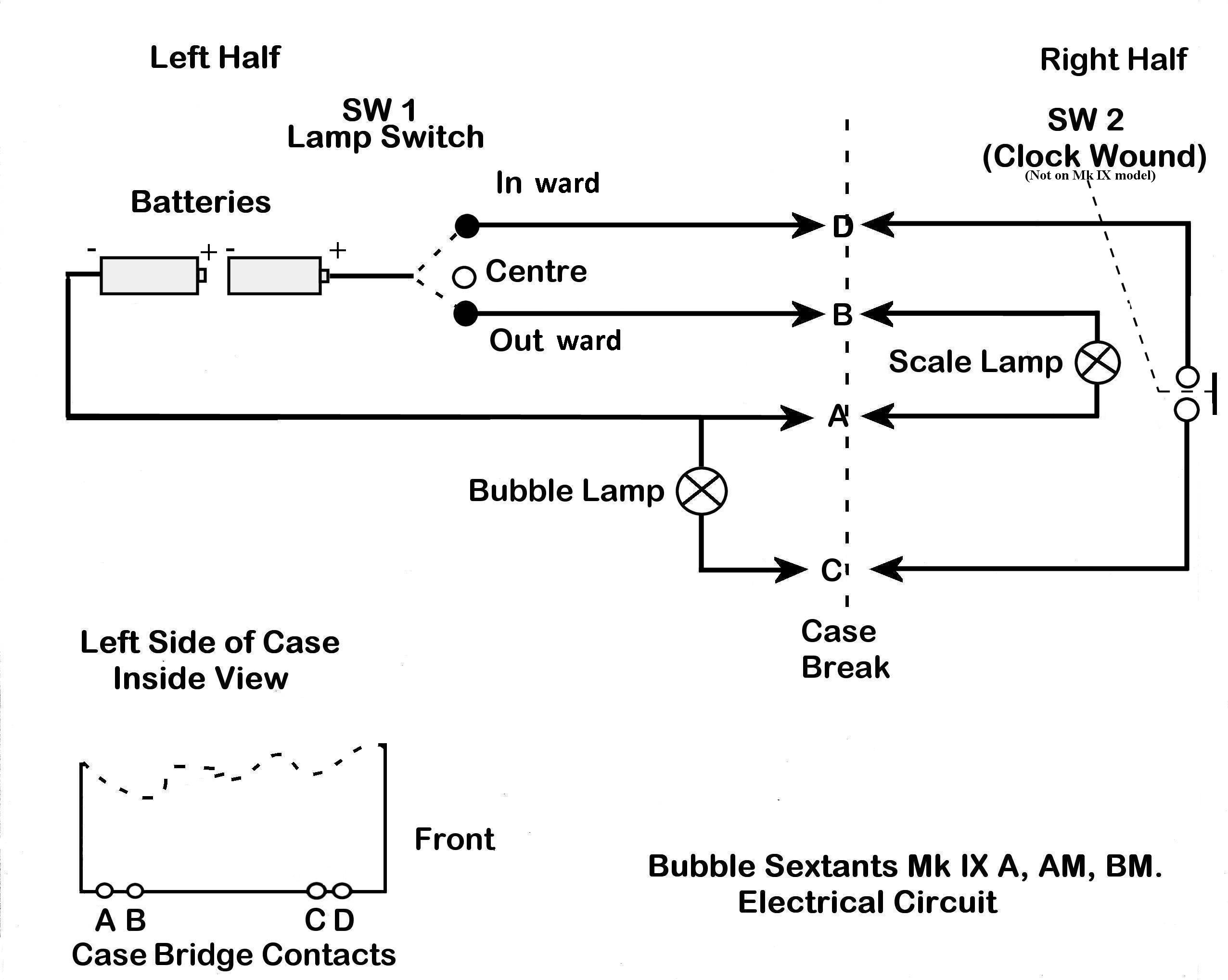

A schematic of the IX series
Note! The polarity of the wiring is not
always quite as shown in this and other drawings. Of no account
for a filament lamp but important to establish if you use an LED.

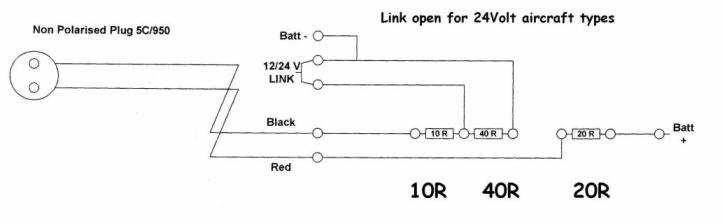

Battery Elliminator
This is in the Paxolin tube supplied
with all models
My
record of lamp polarities
